| 원래 장소: | 랑팡 시, 허베이성, 중국 |
| 브랜드 이름: | XINYUAN |
| 인증: | ISO9001 quality management system certification |
| 최소 주문 수량: | 100 PC |
|---|---|
| 가격: | negotiable |
| 포장 세부 사항: | 일반 종이 패키징. 모델에 따라서, 패키징은 다를 것입니다. |
| 배달 시간: | 24 시간 |
| 지불 조건: | 전신환 |
| 공급 능력: | 10,000 PCS/Month |
| 크기 (mm): | 287*592*550 | 가방의 수: | 3 |
|---|---|---|---|
| 필터 면적 (M2): | 1.86 | 평가된 공기 용적 (m3/h): | 1700년 |
| 초기 저항 (Pa): | 15 | 최종 저항 (Pa): | 350 |
| 강조하다: | 35% 주머니 공기 Filters,1700m3/h 에어백 공기 Filter,1700m3/h 주머니 공기 정화 필터 |
||

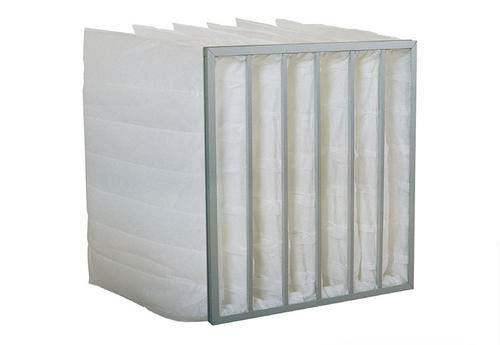

Easy To Capture Dust. High Filtration Accuracy Pocket Air Filters
Product Description:
The diamond-shaped surface mesh design first intercepts larger particles and debris to protect the integrity of the filter bag. Greatly increase the service life of the filter. The surface mesh is made of carbon steel galvanized and stainless steel. It can be selected according to site requirements.
Product parameter:
|
Size (mm) |
Number of bags |
Filter area (m²) |
Rated air volume (m³/h) |
Efficiency class |
Initial resistance (Pa) |
Final resistance (Pa) |
|
287*592*550 |
3 |
1.86 |
1700 |
35%(G4) |
15 |
350 |
|
592*592*550 |
5 |
3.12 |
3400 |
20 |
||
|
592*592*600 |
6 |
3.78 |
3400 |
20 |
||
|
287*592*550 |
3 |
2.12 |
1700 |
45%(F5) |
20 |
400 |
|
592*592*550 |
5 |
3.66 |
3400 |
30 |
||
|
592*592*600 |
6 |
4.40 |
3400 |
30 |
||
|
287*592*550 |
3 |
2.12 |
1700 |
65%(F6) |
45 |
400 |
|
592*592*550 |
5 |
3.66 |
3400 |
80 |
||
|
592*592*600 |
6 |
4.40 |
3400 |
80 |
||
|
287*592*550 |
3 |
2.80 |
1700 |
85%(F7) |
100 |
400 |
|
592*592*550 |
5 |
4.78 |
3400 |
125 |
||
|
592*592*600 |
6 |
5.78 |
3400 |
125 |
||
|
287*592*550 |
3 |
2.80 |
1700 |
95%(F8) |
110 |
450 |
|
592*592*550 |
5 |
4.78 |
3400 |
130 |
||
|
592*592*600 |
6 |
5.78 |
3400 |
130 |
||
|
Minimum order quantity: 100 pcs. Supply capacity: 10,000 pcs/month. Delivery time: 24 hours |
||||||
Product features:
Solid all-metal frame structure
High quality fluffy multi-layer synthetic fiber filter paper
High dust holding capacity, low resistance (300-400g/m2)
Ultrasonic seamless close-fitting bag structure
Application:
Clean room centralized ventilation and air conditioning system and return air filtration to extend the service life of the high efficiency filter in the rear section
Ventilation system for general industrial plants to meet general cleaning requirements for air
Rough dust filtration system of air conditioning in general construction building
FAQ:
1.Q:Are you trading company or manufacturer
A:We are manufacturing specialized in industrail air filter(filter cloth,filter bag,filter cartridge,air conditioner,filter cage,controller)etc.
2.Q:Can the product be customized?
A:Yes,both the product and the packaging can be customized.We offer OEM and ODM services.
3.Q:What's your packing?
A:Plastic/Carton,or according to your requirements.
4.What's is Minimun order quantity?
A:No strict principle for standard size,but 10pcs for non-standard dimensions or types.
5.What about the after-sales services?
A:Our company is responsible for the supplied product within usage life.
